Custom Patio Doors in Winnipeg
These doors deliver unrivalled durability and robustness thanks to their 100% PVC ultra-rigid frame. Southern Shade door systems not only add warmth and beauty to your home, but they also add extra security and are virtually maintenance free. Southern Shade offers a wide range of styles, decorative glass options, and colours to suit any entryway. Every Southern Shade replacement door system is custom manufactured with the highest quality materials.
- Multichamber PVC frame
- Multichamber PVC sash
- Multiple weatherstripping to eliminate air infiltration
- Steel reinforcements in the most heavily used parts
- 1-point mortise lock
- Hidden sash stoppers for aesthetic appeal
Our custom patio doors manufactured in Winnipeg are designed to meet the highest and latest Canadian performance standards in terms of energy efficiency.
- Highly energy-efficient double glazing: non-conductive spacer, low-E coating, and argon gas to maximize the energy rating (ER) of your patio door
- Design that allows for 1"-thick double or triple glazing
- Profiles designed to significantly reduce the risk of condensation
Call Southern Shade Window & Door Inc. in Winnipeg today for more information on our custom patio doors.
S-7800 Patio door All-PVC frame with mechanical sash
These doors deliver unrivalled durability and robustness thanks to their 100% PVC ultra-rigid frame.
- Multi-chamber PVC frame, 4 9/16"
- Multi-chamber PVC sash
- Multiple weatherstripping to eliminate air infiltration
- Steel reinforcements in the most heavily used parts
- 1-point mortise lock
- Hidden sash stoppers for aesthetic appeal
Unequalled energy efficiency
P.H. Tech patio doors are designed to meet the highest and latest Canadian performance standards in terms of energy efficiency.
- Highly energy-efficient double glazing: non-conductive spacer, low-E coating, and argon gas to maximize the energy rating (ER) of your patio door
- Design that allows for 1"-thick double or triple glazing
- Profiles designed to significantly reduce the risk of condensation
Options
- Low-E double or triple glazing
- Bronze tinted glass
- Mini-blinds between the glass available on doors 5', 6', 9' and 12' wide
- Brickmolds

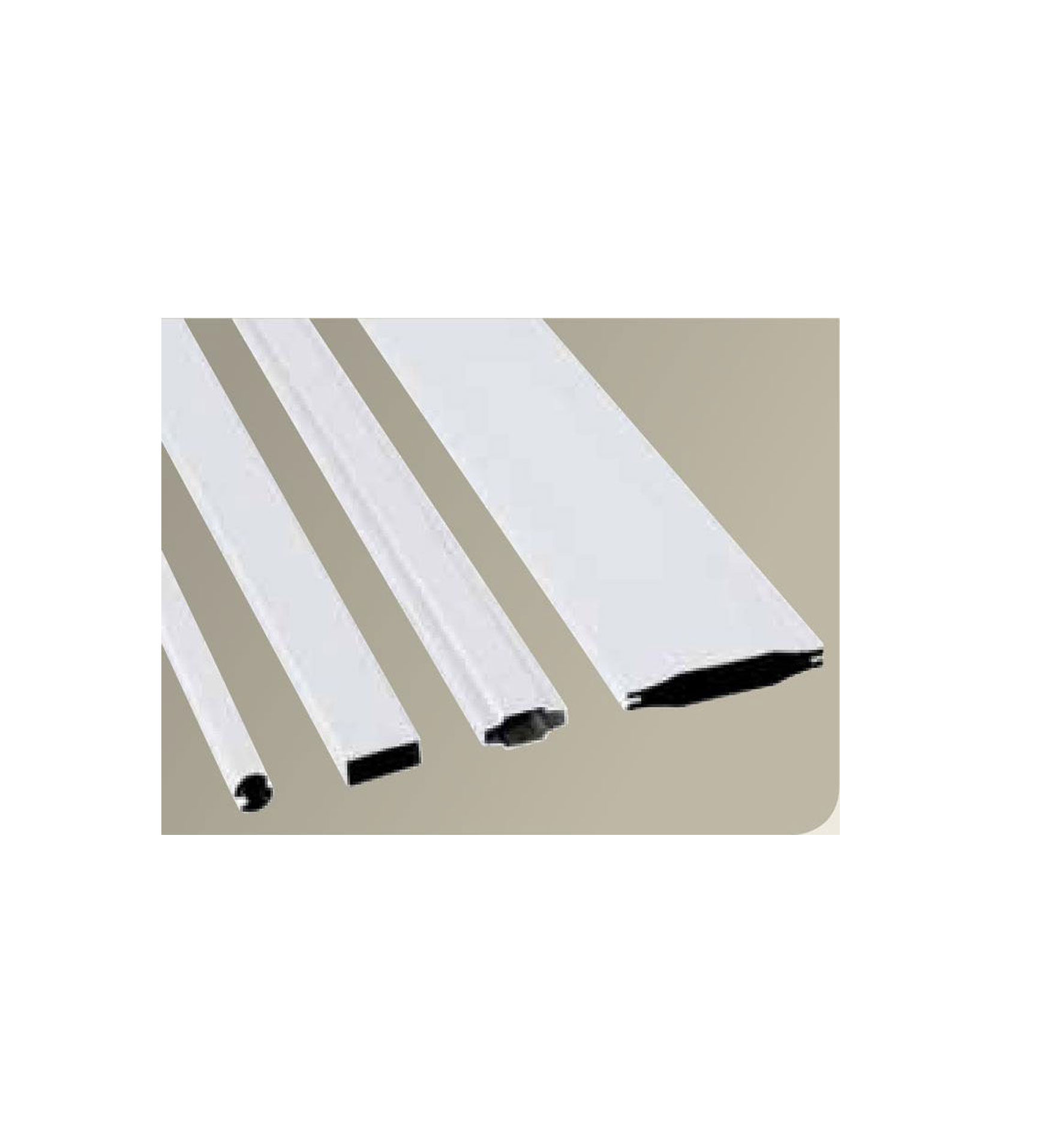

Decorative grilles
- Rectangular 1/4" and 1/4" x 1"
- Georgian 5/16" x 5/8", 5/16" x 1" and 1 3/4"

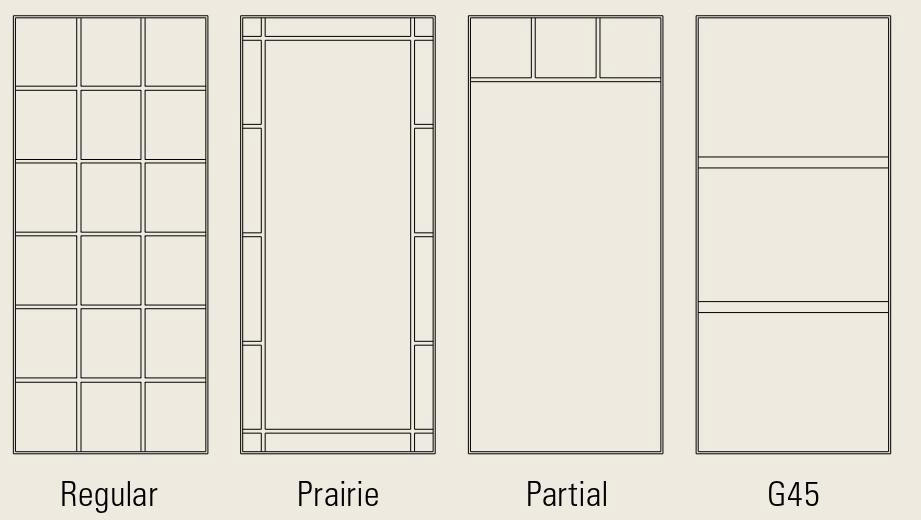

- Standard configurations: Regular (3 x 6), Prairie (3 x 5), Partial (3 x 1) or G45 (1 x 3)
- On request: non-standard configurations and tubular grids in white, brass, lead or pewter
Unprecedented reliability
Choose from a wide range of options and accessories.
- 100% aluminum raised rail protects the wheels from damage or jamming caused by dirt and debris.
- Patented tandem wheels in ultra-durable nylon leave no marks on the rail and provide smoothness of operation
- Our doors withstood 119,000 test cycles without failure, carrying a 165 lb. sash—the equivalent of over 30 years of constant use!
The easiest-opening door in its category
Try the test yourself: you can open it with just your fingertips!
Additional security
- Foot lock
- Security bar
- Two-point mortise lock
Customize your patio door
Choose from a wide range of options and accessories.
Standard colours
Blue
Cream White
Beige
Optional exterior colours
Select from our 30 standard colours available. Ask to see the colour samples.
Black
Grey
Commercial Brown
Handles
Easy-to-grip rounded handles. With or without key. Available in various finishes.
Bright Chrome
Brushed Chrome
Brass
Black Nickel
Black
White
Wood
Doublenature®, the best of both worlds!
A warm and realistic stained wood grain finish that can be applied both inside and out and requires no maintenance.
Simply Authentic Wood Interior
A real solid wood interior allowing you to coordinate the interior décor of your home.
Configurations
Available in 2-panel, 3-panel, and 4-panel configurations
Panoramic mulling
Transom or sidelites available.
Screens
- Rolled steel Aluminum, with patented spring-loaded rollers for durability and ease of operation
- Will not skip or jump off the track
- Can be removed without tools
- Patented spring-loaded suspension system
Performance
Energy performance
| Glass package | U-factor(W/m²K) | U-factor(Btu/h pi² °F) | Solar heat gain (SHGC | Visual transmission | Energy rating (ER) | Zone |
|---|---|---|---|---|---|---|
| Double, low-e argon, 1", Warm-Edge spacer | 1.76 | 0.31 | 0.55 | 0.60 | 33 | 2 |
| Triple, low-e double argon, Warm-Edge spacer | 1.31 | 0.23 | 0.43 | 0.53 | 36 | 3 |
Water-Air-Structure performance
| Dimensions | Harmonized standard | Performance | Solar heat gain (SHGC | Visual transmission | Energy rating (ER) | Zone |
|---|---|---|---|---|---|---|
| 1800 mm x 2080 mm 72" x 82" | AAMA/WDMA/CSA 101/I.S.2/A440-08 | R-PG60-SD | 0.55 | 0.60 | 33 | 2 |
ENERGY STAR Technical Specification for Residential Windows, Doors, and Skylights Sold in Canada
Version 4.0 – February 1, 2015
Appendix A
The climate zones are determined by heating degree day (HDD) values as found in the Model National Building Code (2010). Specific locations, their HDD values and climate zone are shown below the map. If the location has an asterisks appended to it, the location has been assigned a colder zone to maintain market integrity.
Zone 3:> = 6000 HDDs
Zone 2: 3500 to < 6000 HDDs
Zone 1: < 3500 HDDs
